Brewery Sight Glass Replacement Parts

These sight glasses are rated for a maximum operating pressure of 150 PSI and a temperature range of -40°C to 500°C (up to 400°F). This makes them suitable for demanding industrial environments including high-temperature brewery CIP (clean-in-place) cycles and pressurized fluid monitoring applications.

Yes. The tri-clamp end cap design is compatible with any standard tri-clamp line, clamp, and gasket. Simply match the ferrule size (1.5" through 6") to your existing piping. No special adapters are required, making these replacement parts straightforward to integrate into current sanitary process systems.

These sight glass components comply with FDA 21CFR177.2600 and 21CFR177.1550, are approved under 3-A Sanitary Standards, and carry USDA approval for the glass material. This makes them suitable for use in regulated environments such as food and beverage production, dairy facilities, pharmaceutical processing, and USDA-inspected plants.

Borosilicate glass is used in these sight glasses due to its excellent chemical resistance, thermal shock tolerance, and clarity. It withstands a wide temperature range and resists common brewing chemicals including caustic cleaners and acids. It also meets 3-A and USDA sanitary standards, making it ideal for food-safe and pharmaceutical-grade process monitoring.

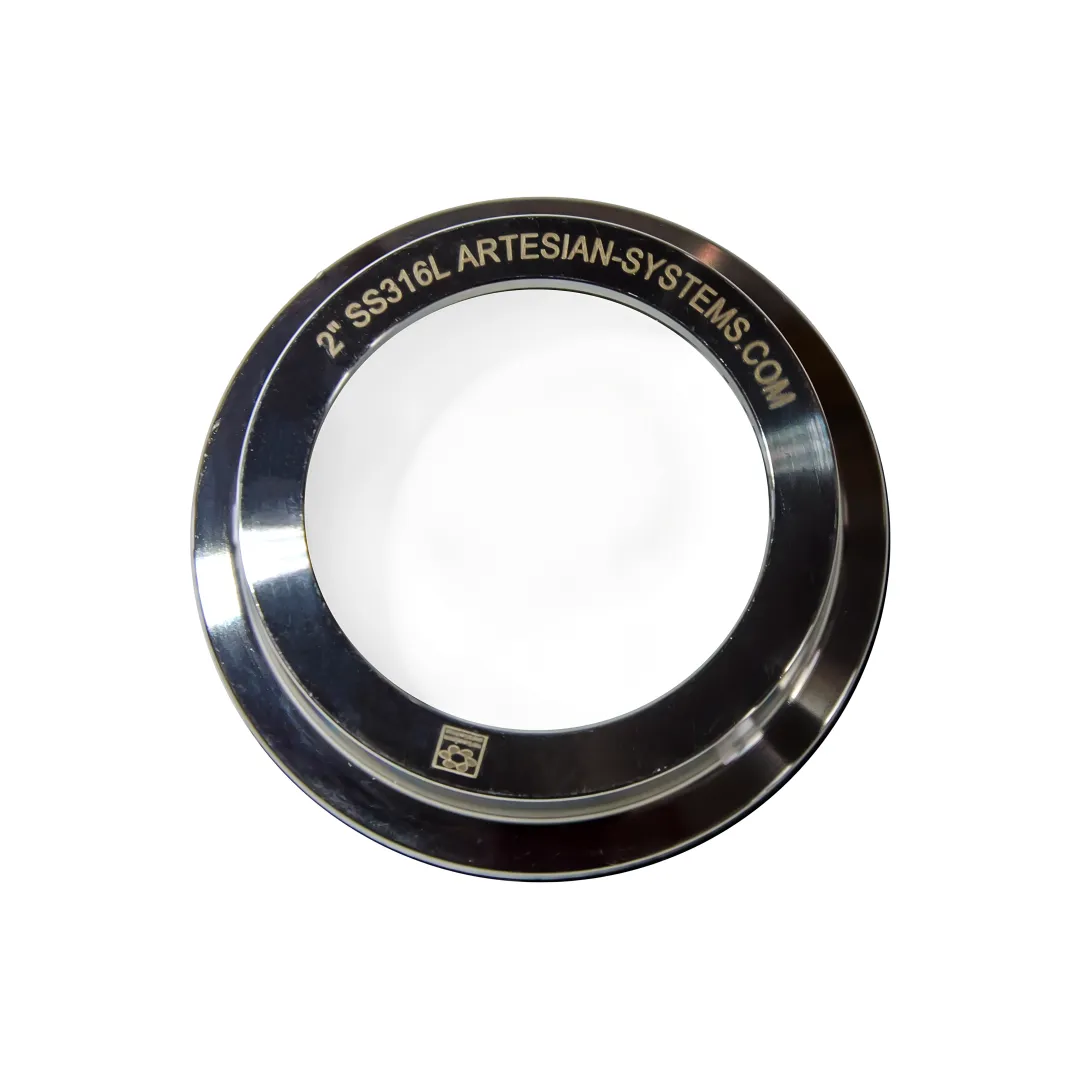

The end cap body is constructed from 316 stainless steel, which offers superior corrosion resistance compared to 304 stainless steel, particularly in chloride-rich and acidic environments common in brewing and food processing. The seamless tri-clamp ferrule design eliminates crevices that could harbor bacteria, supporting hygienic process operations.

Yes. The borosilicate glass and 316 stainless steel construction provide excellent resistance to a wide range of chemicals and petroleum-based fluids. These parts are rated for industrial fluid monitoring and are used across pharmaceutical, chemical, and petroleum processing industries in addition to brewery and food and beverage applications.
