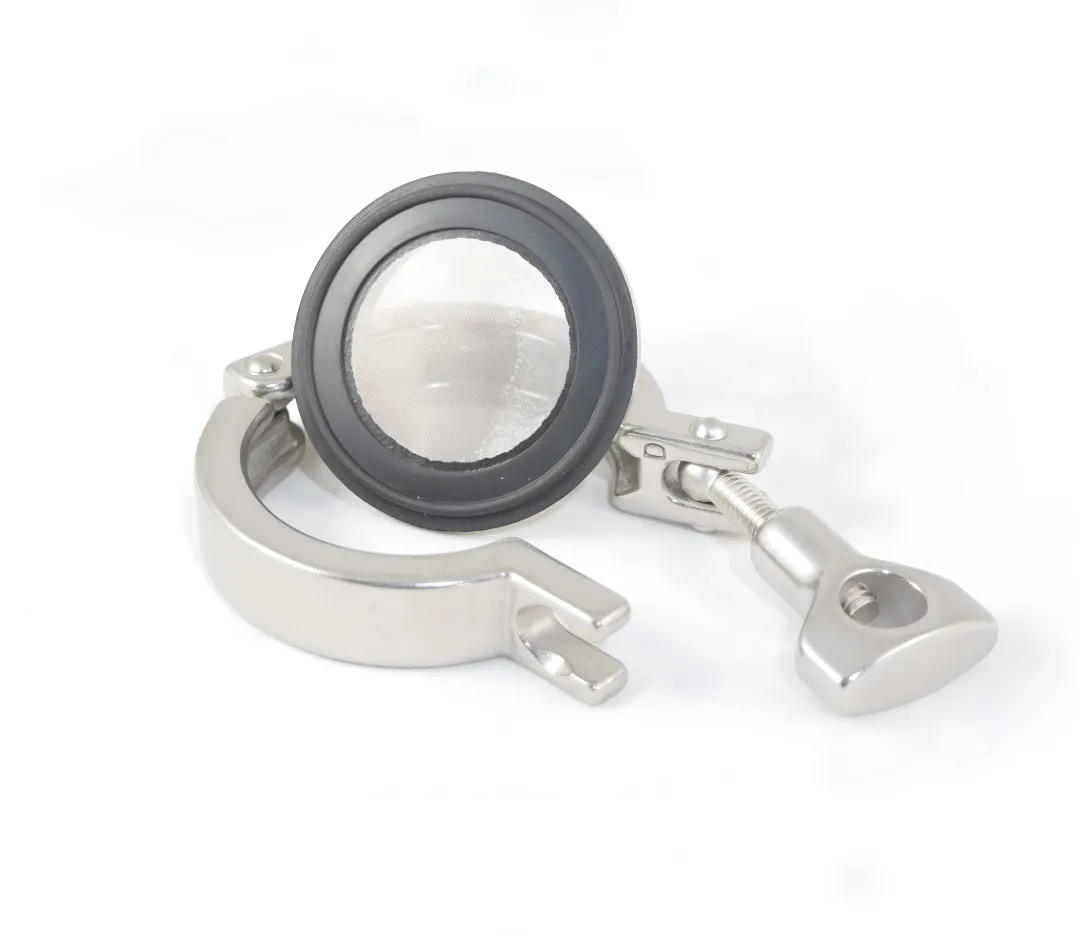

Viton Screen Gaskets for Solvent Recovery Systems

These Viton/FKM screen gaskets are available in three filtration ratings: 5 micron, 20 micron, and 100 micron. The 5 micron is ideal for fine particle removal in pharmaceutical applications, 20 micron suits general sanitary processing, and 100 micron is appropriate for coarser pre-filtration in food, beverage, and chemical systems.

Yes. All Viton/FKM tri clamp screen gaskets comply with FDA 21CFR177.2600 and 21CFR177.1550, are approved under 3-A Sanitary Standards and USDA, and have passed U.S.P. Class VI Cytotoxicity testing. This makes them suitable for food, pharmaceutical, biotech, and medical-grade fluid handling applications.

These screen gaskets are available in 1.5", 2", 3", 4", and 6" tri clamp sizes across all three micron ratings (5, 20, and 100 micron). This range accommodates most standard sanitary pipeline configurations in food processing, pharmaceutical, and chemical or solvent recovery installations.

All Viton/FKM screen gaskets are rated for operation from -40°F to +250°F (-40°C to +121°C). This broad thermal range makes them suitable for cryogenic solvent recovery processes as well as heated chemical processing applications, providing reliable performance without gasket degradation across a wide range of process conditions.

The integrated filtration screen is constructed from 316L stainless steel, chosen for its superior corrosion resistance in aggressive chemical and solvent environments. 316L SS withstands exposure to chlorides, organic solvents, and acidic solutions while maintaining structural integrity under pressure, ensuring long service life in demanding process applications.

Yes. The Viton/FKM material has passed U.S.P. Class VI Cytotoxicity testing, confirming biocompatibility for pharmaceutical and biotech use. Combined with FDA 21CFR compliance and 3-A sanitary approval, these gaskets are validated for use in sterile fluid handling, API processing, biotech fermentation, and other regulated pharmaceutical manufacturing environments.
