EPDM Gaskets for Food & Beverage Applications

Yes. Artesian Systems' EPDM-based gaskets meet FDA 21 CFR 177.2600 and GMP (Good Manufacturing Practices) standards, confirming their suitability for direct food contact applications. They are manufactured to sanitary and pharmaceutical grades for use in food and beverage processing systems.

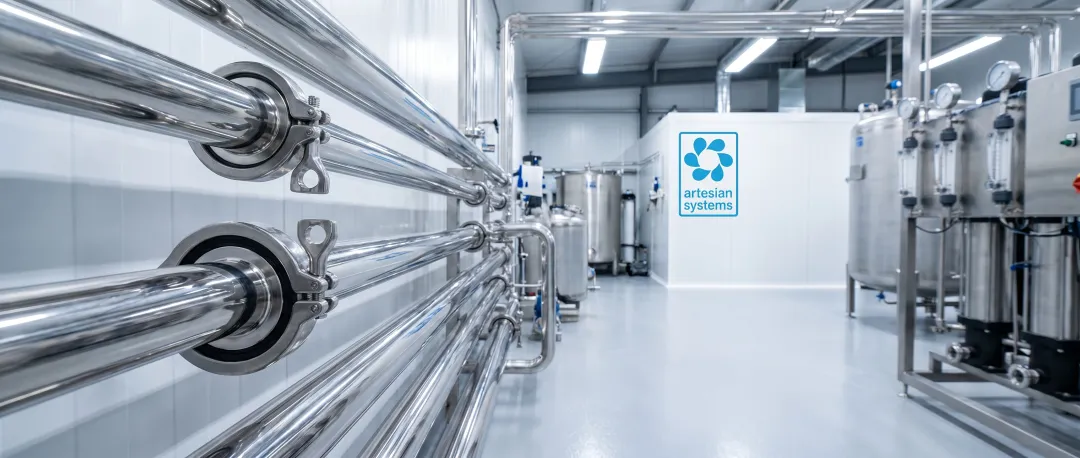

EPDM is one of the most recommended elastomers for potable water systems due to its excellent resistance to water, steam, and many chemicals. Artesian Systems' PTFE x EPDM gaskets combine this compatibility with FDA-compliant PTFE contact surfaces, making them ideal for both potable and process water applications.

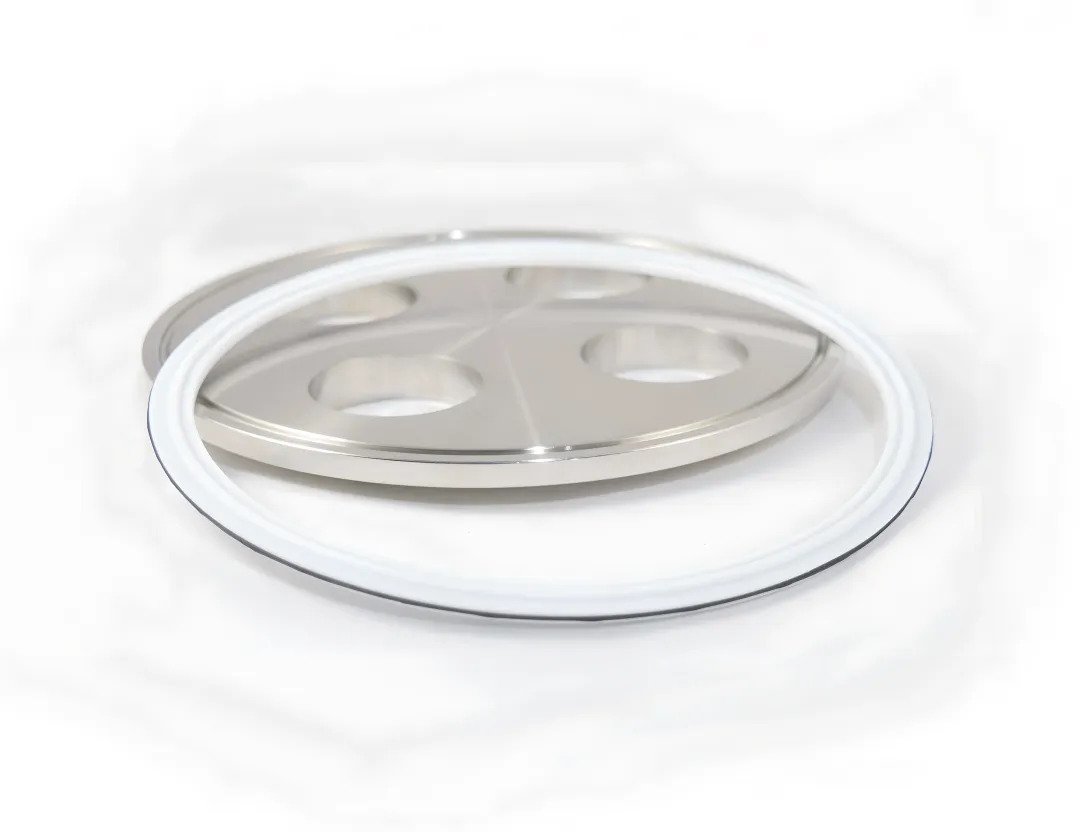

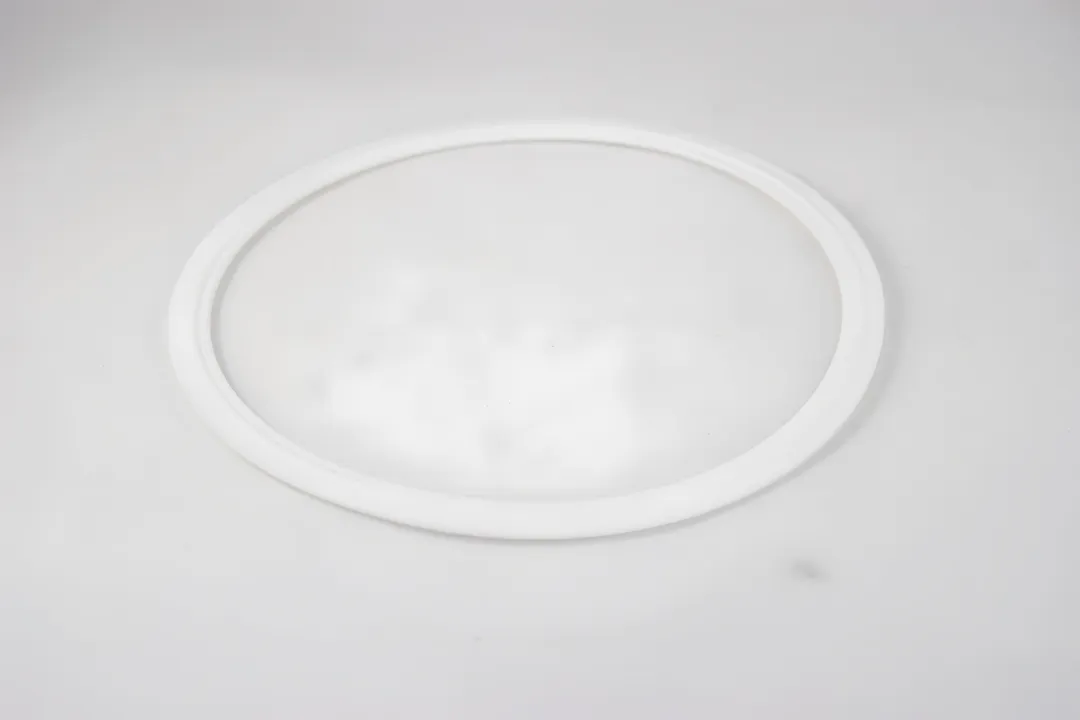

An envelope gasket features a PTFE outer layer wrapped around an EPDM filler core, while a unitized gasket is a single bonded one-piece design with PTFE sealing surface and EPDM core. The unitized design offers greater installation stability and reduces component movement, whereas the envelope design is well-suited for standard tri-clamp applications.

Both the envelope and unitized PTFE x EPDM gaskets are available in sizes ranging from 1.5" up to 12", including 2", 3", 4", 6", 8", and 10". Note that some sizes may be subject to availability. Contact Artesian Systems directly for current stock and lead times.

Both the envelope and unitized PTFE x EPDM gaskets have a shelf life of 10 years from the cure date when stored correctly. Proper storage requires the original packaging, a clean and dry environment, temperatures between 65°F and 85°F, away from direct sunlight and at least 6 feet from electric motors.

Yes. Both gasket designs are rated sanitary and pharmaceutical grade and comply with FDA 21 CFR 177.2600 and GMP guidelines. They are used in pharmaceutical manufacturing, biotechnology, and life sciences fluid handling systems that require stringent material compliance and reliable tri-clamp sealing performance.
