Tri Clamp Screen Gaskets — Sanitary Inline Filtration

Tri clamp gasket size is determined by the outer diameter of the ferrule (tube OD), not the gasket's own outer diameter. For example, a 1.5" tri clamp gasket fits ferrules designed for 1.5" tube OD. Always match your gasket size to the ferrule size stamped on your fitting or clamp, as sizes range from 1.5" to 6" in this product line.

A ferrule is the flanged end fitting welded or attached to tubing that creates the connection face. A tri clamp (also called a sanitary clamp or tri-clover clamp) is the external fastener that draws two ferrule ends together over a gasket to form a sealed joint. The gasket sits between the two ferrules; the clamp applies the clamping force.

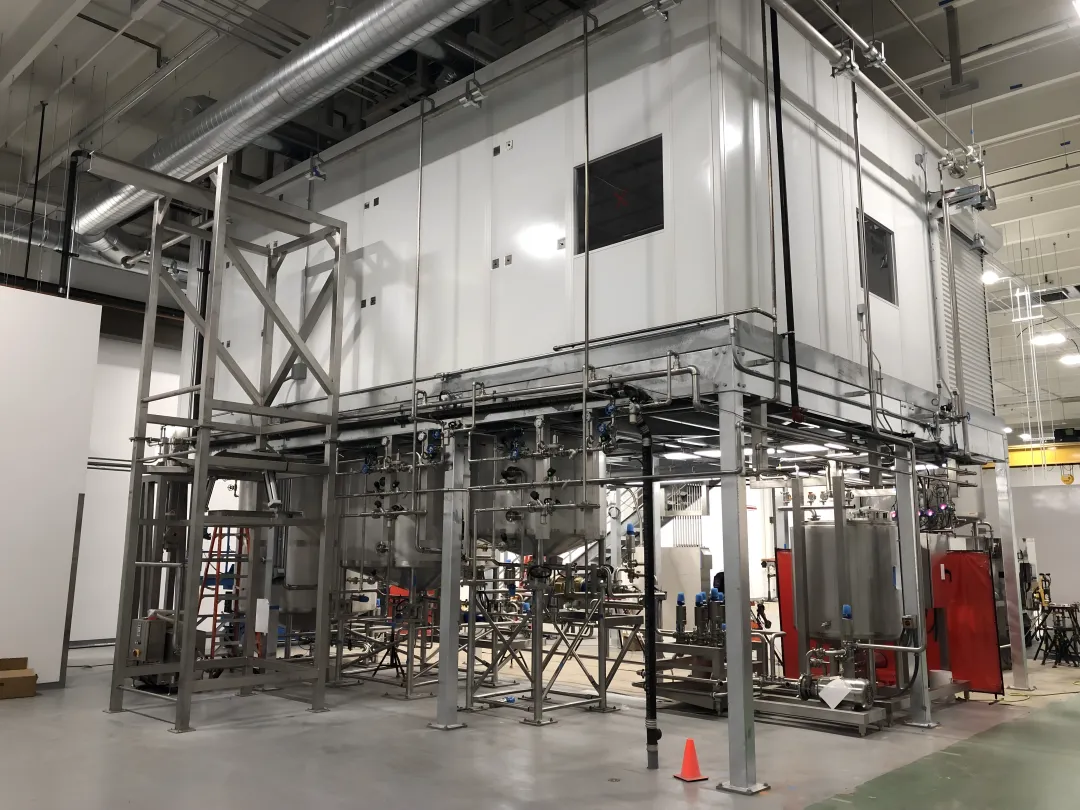

Artesian Systems offers tri clamp screen gaskets in three elastomer materials: BUNA-N (Nitrile), VITON/FKM, and PTFE/Teflon. BUNA-N suits petroleum, oils, and glycols. VITON/FKM provides excellent chemical resistance including aggressive solvents. PTFE/Teflon offers the broadest chemical inertness for corrosive or highly aggressive media in pharmaceutical and chemical applications.

Artesian Systems' tri clamp screen gaskets are available in 5 micron, 20 micron, and 100 micron filtration ratings. The 5-micron rating delivers fine filtration for pharmaceutical and biotech applications, 20 micron is suited for food-grade and dairy processing, and 100 micron provides coarse straining for general sanitary pipeline protection.

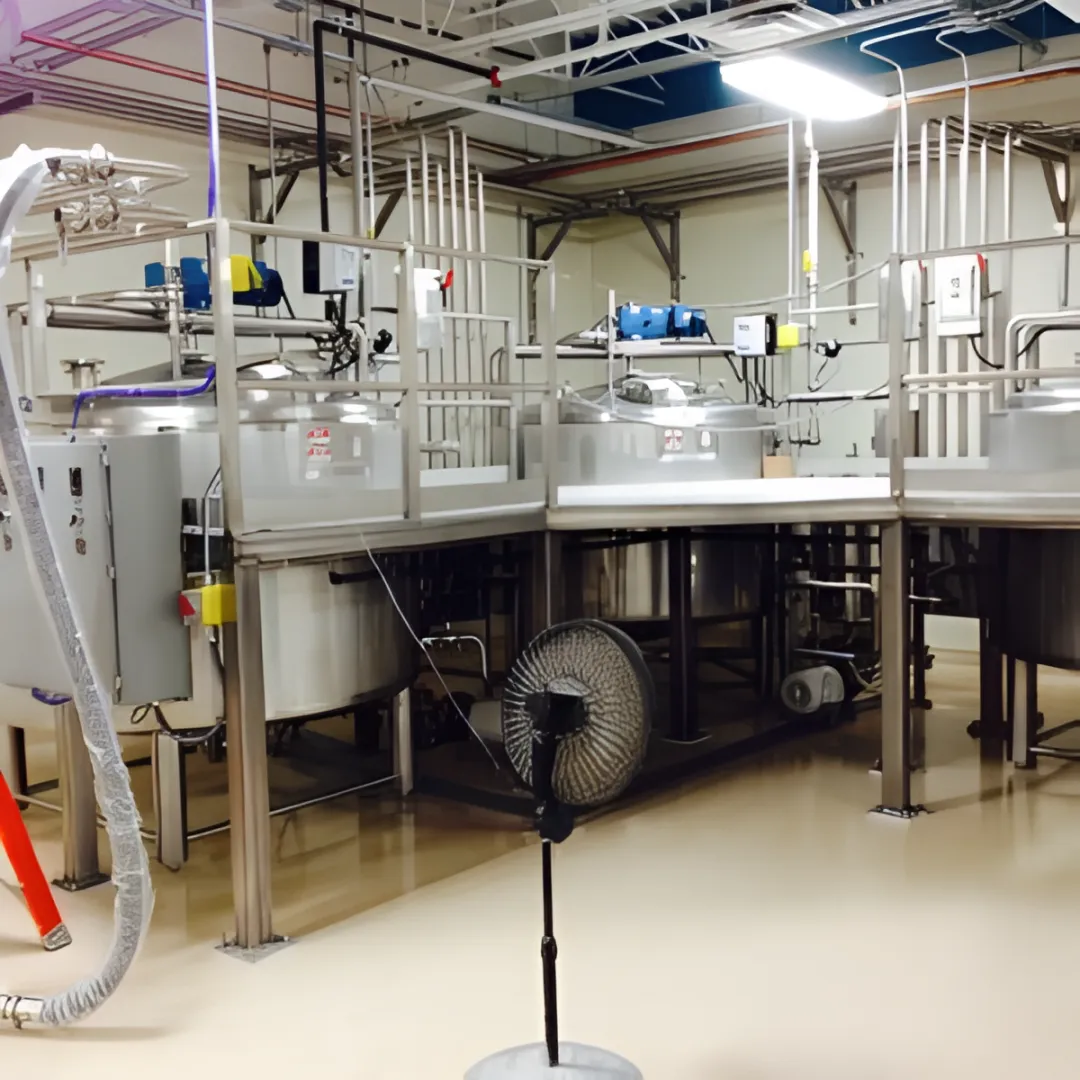

Yes. All tri clamp screen gaskets in this range comply with FDA 21CFR177.2600 and 21CFR177.1550, are approved by 3-A Sanitary Standards and the USDA, and have passed U.S.P. Class VI Cytotoxicity testing. This makes them suitable for food, beverage, pharmaceutical, biopharmaceutical, and dairy processing environments where regulatory compliance is mandatory.

Screen gaskets are available in sizes 1.5", 2", 2.5", 3", 4", and 6" to fit standard tri clamp sanitary fittings. Availability of specific sizes may vary slightly by gasket material and micron rating. All sizes use a standard tri clamp connection interface, enabling straightforward drop-in installation within existing sanitary piping systems.
