Viton Gaskets for Petroleum & Petrochemical Applications

Viton/FKM is widely regarded as the best gasket material for petrol and petroleum-based fluids. It resists swelling, degradation, and permeation when exposed to fuels, oils, and hydrocarbons. Compared to EPDM or silicone, Viton provides superior chemical resistance for petroleum service, especially in inline filtration and sanitary tri clamp pipeline systems.

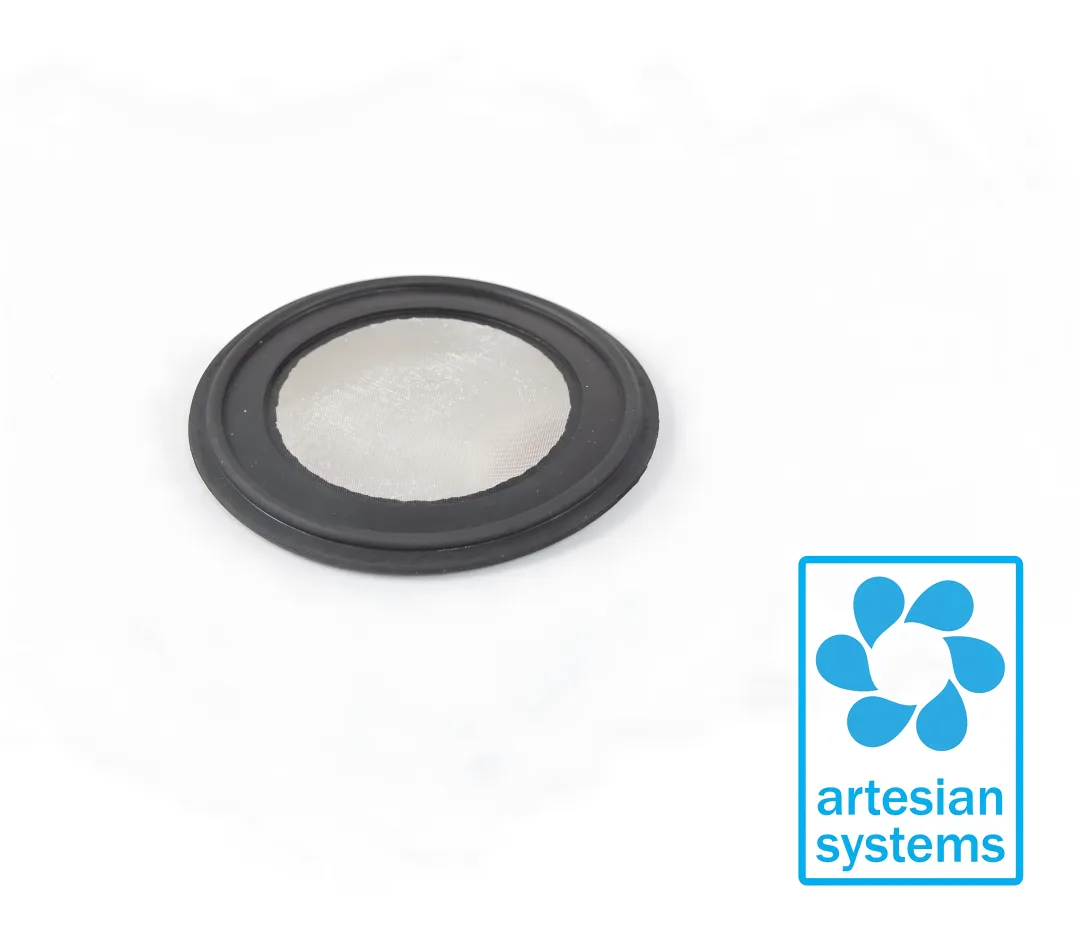

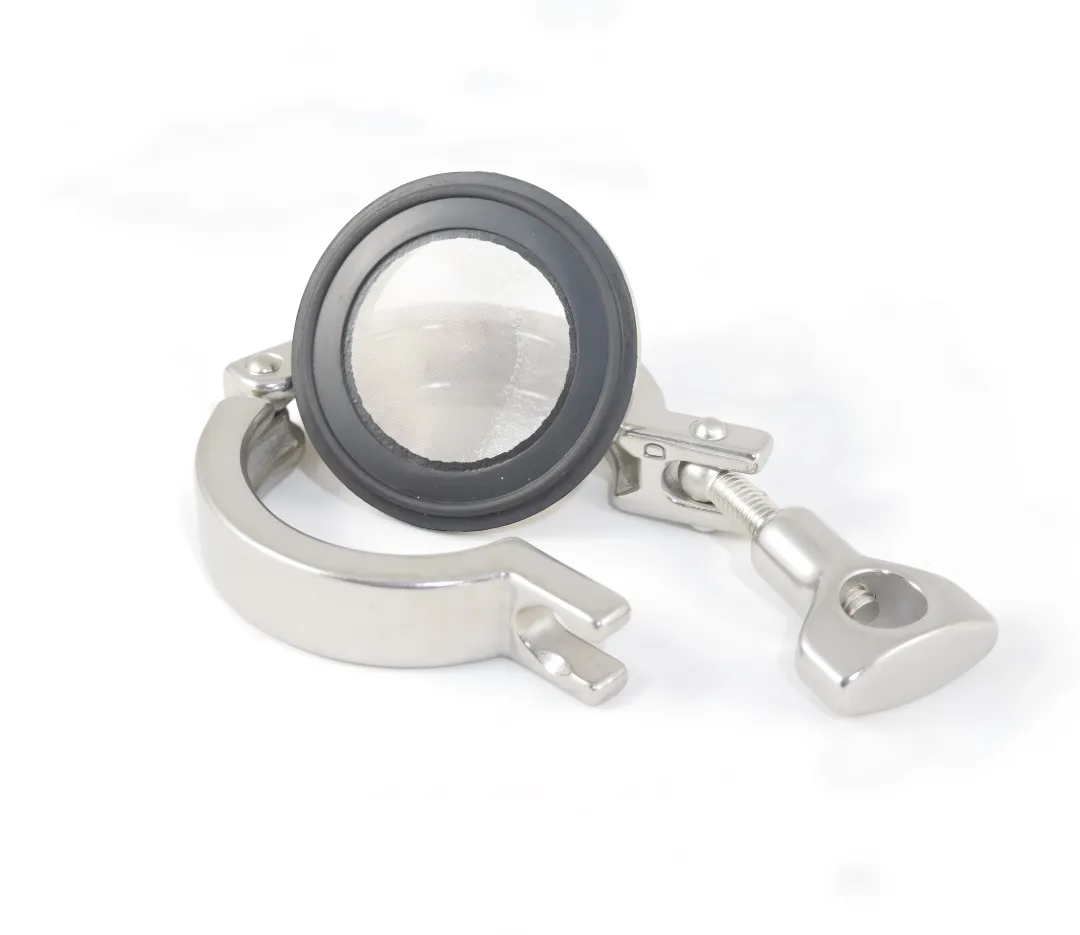

Artesian Systems offers Viton/FKM tri clamp screen gaskets in three filtration ratings: 5 micron, 20 micron, and 100 micron. The 5-micron option is ideal for fine filtration in pharmaceutical or biotech processes, while the 100-micron is suited for coarser pre-filtration in petroleum and chemical applications.

All Viton/FKM tri clamp screen gaskets from Artesian Systems are available in five standard tri clamp sizes: 1.5", 2", 3", 4", and 6". This range covers most sanitary pipeline configurations used in petroleum, chemical, food, and pharmaceutical processing systems.

Yes. All Viton/FKM screen gaskets are compliant with FDA 21CFR177.2600 and FDA 21CFR177.1550, approved by 3-A Sanitary Standards and the USDA, and have passed U.S.P. Class VI Cytotoxicity testing. This makes them suitable not only for petroleum applications but also for food, dairy, pharmaceutical, and biotech fluid handling.

Artesian Systems' Viton/FKM tri clamp screen gaskets operate reliably across a wide temperature range of -40°F to +250°F (-40°C to +121°C). This range accommodates most industrial petroleum processing conditions, as well as cryogenic, refrigerated, and elevated-temperature chemical process environments.

In addition to petroleum derivatives, these Viton/FKM gaskets are compatible with alcohols, ethers, glycols, fats, oils, greases, and mildly acidic salt solutions. This broad chemical resistance makes them versatile for cross-industry use including food processing, dairy, brewing, pharmaceutical, and general chemical processing applications.
